Scinomix Sci-Print MP2+

SKU: SC2000-0754

You need to log-in to order
Valid Until 31/12/2024: Take advantage of our 10% discount on our Sci-Print MP2 and MP2+!

The Sci-Print MP2+

The ultimate micro-plate labelling system

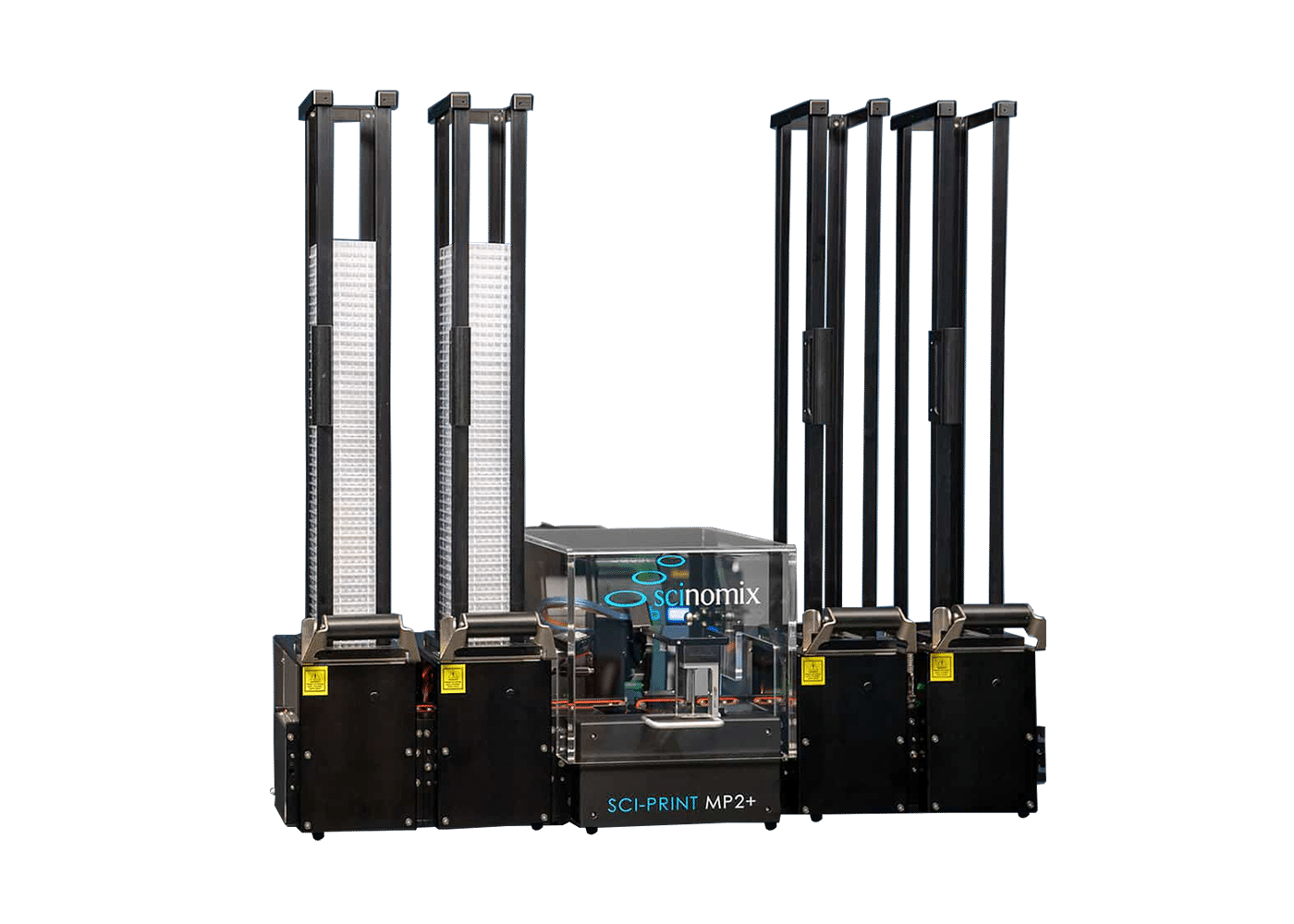

The Scinomix Sci-Print MP2+ is the ultimate fully automated microplate labeling system. The system includes 2 vertical towering loading docks, called stackers. The left stacker tower is filled with ongoing microplates and the right stacker tower is empty and to be filled by the Sci-Print MP2+ with the labeled microplates. A single stacker can hold up to 48 half-height and non-lidded microplates or 13 deep well blocks.

The expandable Sci-Print MP2+ is already compatible with a wide variety of microplates and deep well blocks. It is also expandable with even more stackers. This allows you to process even more plates while your team can focus on other more important tasks. With the additional stackers, the system offers even more walk-away time.

The Sci-Print MP2+ has a high throughput

And offers consistent labelling to your laboratory environment

High Throughput
Consistent labelling

The Sci-Print MP2+ is a very fast rack labeller that fits in high throughput labs.
The Sci-Print MP2+ can label all sides of the rack. If you only wish to place a label on one side, the machine can label 440 racks an hour. If you wish to label 2 sides, the machine labels 330 racks per hour. This offers your team valuable walk-away time, which can be spent on other research tasks. Let the machine do the multi-tasking for you.

The labels that the Sci-Print MP2+ places, are consistent every time. This means that the machine will label a wide variety of codes on each plate, but does so in the exact same location with the same amount of force. This allows the adhesive form the perfect bond with the rack.

The Sci-Print MP2+ has delidder addon available

And takes up very little room in your laboratory

Delidder available
Small footprint

Want to save even more time? The Scinomix Sci-Print MP2+ now also comes with a de-lidder. This de-lidder lifts the lids of the racks/plates, allowing the label to be placed on the plate itself and not on the lid itself. This ensures that the label does not get lost because it will always stay on the plates that actually hold the samples. The de-lidder module allows the user to place plates with lids on them in one of the stackers.

Thanks to its vertical stackers, the Sci-Print MP2+ does not take up a lot of space in your laboratory. The Sci-Print MP2+ fits in every laboratory environment thanks to its compact design, user-friendly interface, and parts that are easy to assemble.

Product features

Small footprint

The Scinomix Sci-Print MP2+ is a small, compact device that saves valuable space in the lab.

Expandable stackers

The Sci-Print MP2+ can hold up to 48 microplates or 13 deep well blocks and by extending the stackers, you can even double that.

Flexibility

With the Sci-Print MP2+, users can print a variety of 1D and 2D barcodes.

Productivity

The Sci-Print MP2 is a compact device that increases walk-away time in the lab, accelerating productivity.

  • Throughput 1 Label per rack 440 plates/hour
  • Throughput 2 Labels per rack 330 plates/hour
  • Max amount of microplates 48 half-height plates
  • Max amount of deep well blocks 13 deep well blocks
  • Removable stackers
  • Labels up to 4 sides of a plate
  • Optional barcode scanner for validation
  • Windows based software printer
  • Includes 600 dpi thermal transfer printer
  • Easily integrates into third-party systems
  • Standard label size 2.0″ W x 0.25″ H
  • Plate type requirements ANSI/SLAS plates
  • Air pressure requirements 80-90 PSI @ 2.5 CFM
  • Air-compressor requirements Oil/contaminant free
  • Air-compressor components requirements Inline Regulator, Air dryer
  • Main Power Requirements Printer 110-240V AC @2A 50-60Hz
  • Main Power Requirements Power Supply 120-240VAC @ 1.4A, 50-60Hz
  • Provided Power Supply Output Voltage 24 V DC
  • Max Output Current 2.71 A
  • Max Output Power 65 W
  • Max Ripple and Noise 240 mV p-p
  • Transport and Storage Temperature: -20 degrees C to +55 degrees C
  • Operating Environment Indoor Only
  • Operating Temperature 10 degrees C to 40 degrees C
  • Operating Humidity 20% to 80% non-condensing
  • Operating Altitude Up to 2000M
  • Width: 22” (550mm)
  • Height: 35” (895mm)
  • Depth: 31” (781mm)
  • Weight: 160 lbs. (73KG)
