Micronic Rack Reader DR710

SKU: MP35232

You need to log-in to order

A compact code reader

With an active anti-frost system that can read and validate frozen samples

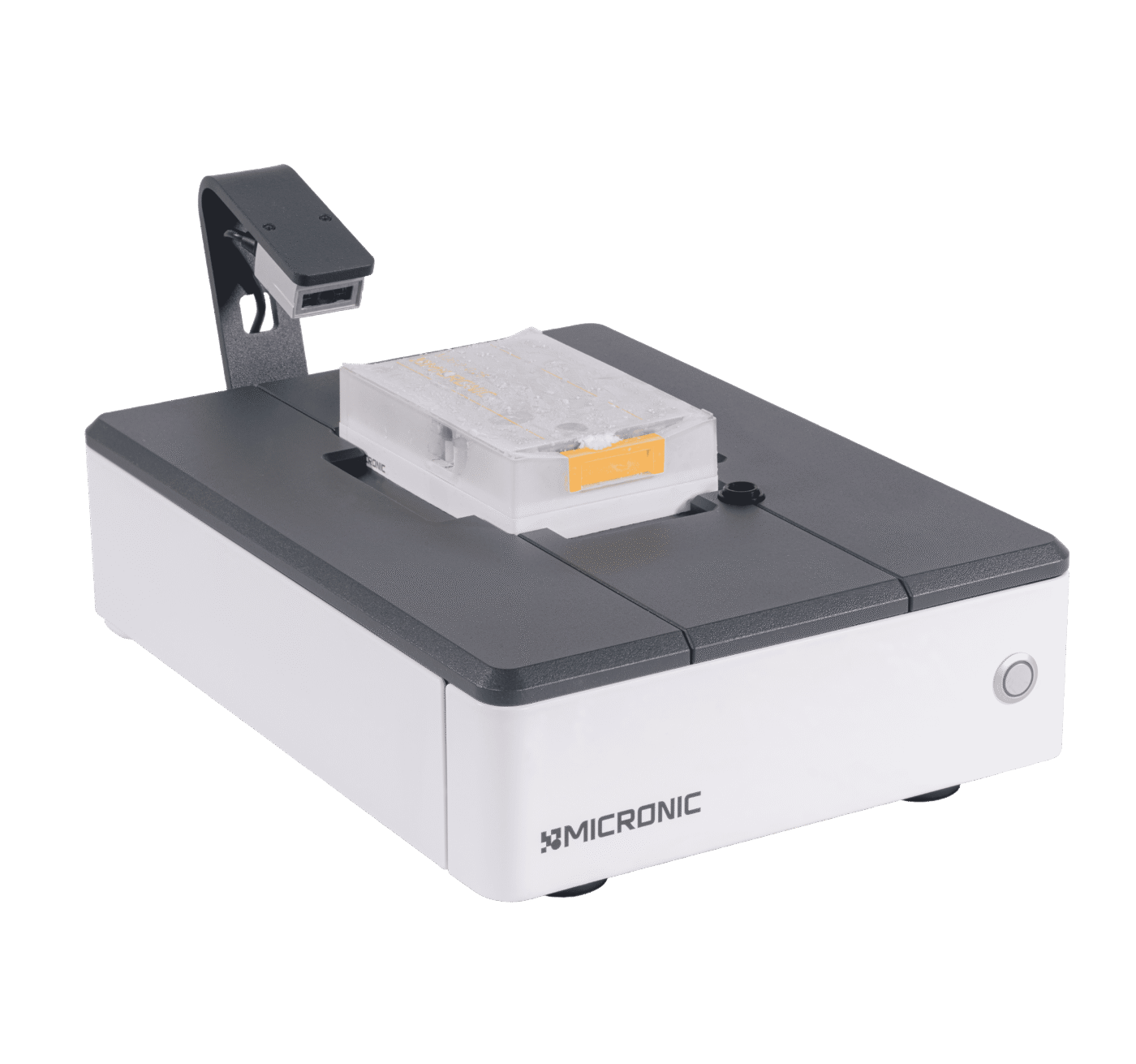

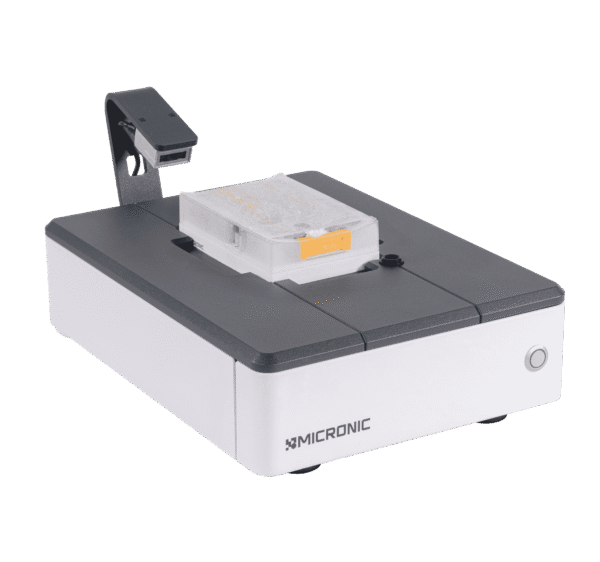

The DR710 is a rack reader from Micronic that can read entire racks of 2D Data-Matrix coded tubes in just 7 seconds. With a deep focus image sensor, the DR710 can ensure the highest accuracy 2D code reading even if the codes are partially compromised. It also includes a uniquely designed anti-frost system to help accelerate the processing of racks with frozen sample tubes.

A Micronic 96-well format rack with lid being taken out of a freezer

Product features

Compatibility

The DR710 is compatible with most brands of 2D Data-Matrix tubes.

Anti-frost system

With the active anti-frost system, condensation on the scanning plate is prevented so that codes from even frozen samples can be read.

Fast Scan Times

The DR710 can read entire racks of tubes in 7 seconds and a single tube (in 96-, 48- or 24-well format) in less than 2 seconds.

Long-lasting warranty

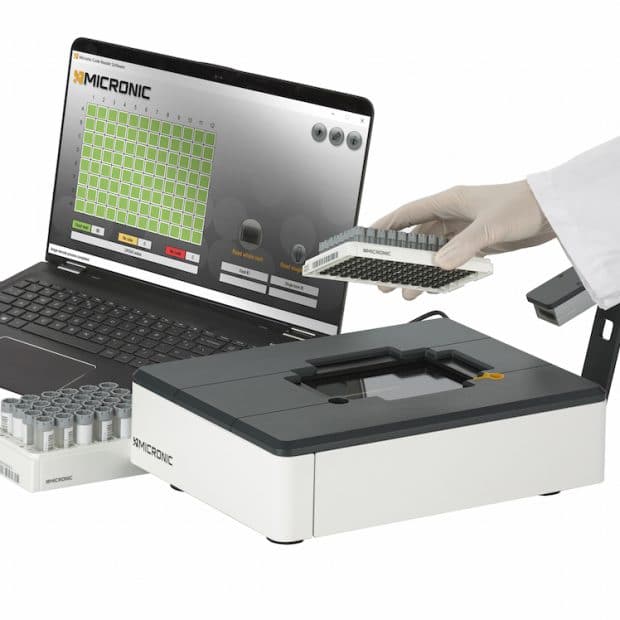

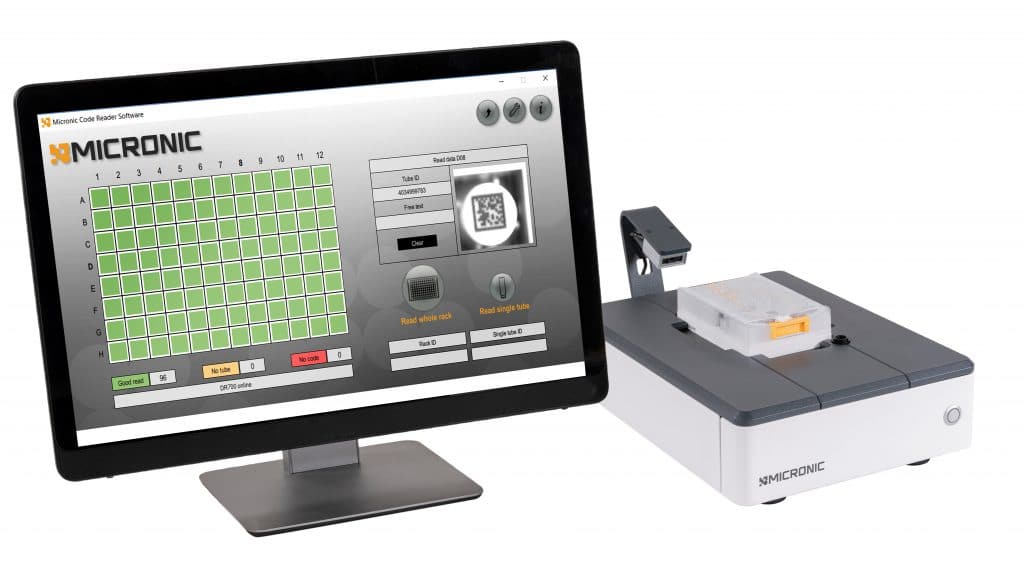

The DR710 includes the latest version of the reliable and easy-to-use Micronic Code Reader software.

  • System requirements 2x USB port
  • Technology included CCD imaging technology
  • Scan time 7 sec (whole rack) / 2 sec (single tube)
  • Dimensions 31 x 23 x 9.1 cm / 12.2 x 9.05 x 3.58 inch
  • Weight 5.3 kg / 11.68 lbs
  • Tube and rack compatibility 96-, 48-, and 24-well format tubes/racks
  • Voltage 115-230 V
  • Tube code reading 2D Data-Matrix
